An electric hoist is a lifting device that uses an electric motor to raise, lower, and move heavy loads. It replaces manual effort with motor power, which makes lifting faster, safer, and far more precise.
Electric hoists are found in warehouses, steel fabrication shops, assembly lines, maintenance bays, and construction sites. They are usually mounted on a beam, monorail, jib crane, gantry crane, or overhead crane, where they act as the actual lifting unit while the crane structure provides support and travel movement.
This guide explains how electric hoists work, the main types available, their core components, and what to consider when choosing one for an industrial application.
How Does an Electric Hoist Work
An electric hoist works by converting electrical energy into mechanical lifting force. The motor drives a gearbox, which reduces speed and increases torque. This turns a drum or sprocket, which winds in a wire rope or chain connected to the load.
The operator controls the hoist using a pendant control or a wireless remote. Pressing a button sends power to the motor, which raises or lowers the load at a controlled speed. A built-in brake holds the load in place the moment the button is released, which prevents drift or accidental drop.
Most industrial hoists also include limit switches, which stop the motor automatically when the hook reaches its highest or lowest allowed position. This protects both the equipment and the operator from overtravel.
Types of Electric Hoists
Electric Wire Rope Hoist
A wire rope hoist uses a steel wire rope that winds around a drum. This type suits heavier loads and is common in overhead cranes used for steel handling, machinery assembly, and heavy manufacturing. Wire rope hoists generally offer higher lifting capacity and faster lifting speed compared to chain hoists.
Electric Chain Hoist

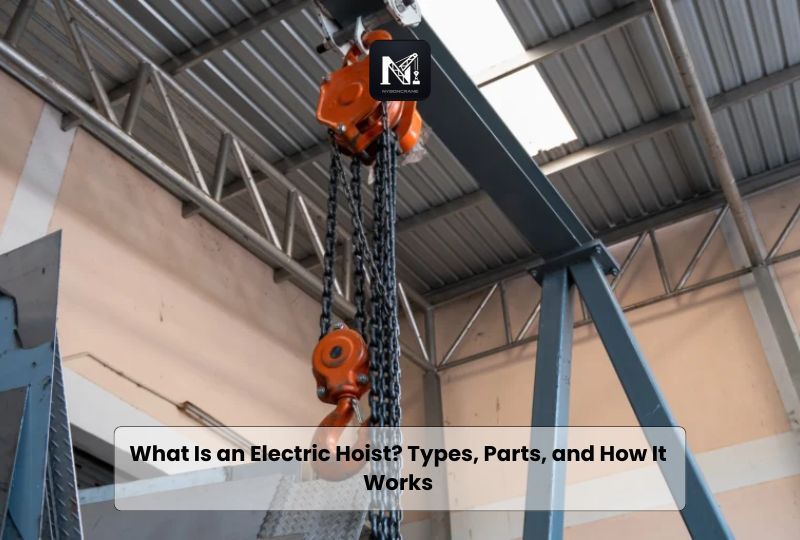

A chain hoist uses a load chain instead of a wire rope. It is more compact, easier to install, and well suited to lighter to medium duty applications such as workshops, maintenance bays, and general material handling. Chain hoists are often the preferred choice when space is limited or when the lifting height is moderate.
Mini Electric Hoist
Compact versions of both wire rope and chain hoists are available for lighter tasks. These are commonly used on smaller gantry cranes or jib cranes where a full-sized industrial hoist is not necessary.
Main Components of an Electric Hoist
An electric hoist is built from a small number of core parts that work together to lift and control the load.
Motor. The power source that drives the lifting action. Motor size is matched to the rated capacity of the hoist.
Gearbox or reducer. Converts the motor’s speed into the torque needed to lift heavy loads smoothly and safely.
Drum or sprocket. Winds the wire rope or chain in and out as the load is raised or lowered.
Wire rope or chain. The lifting medium that connects the drum to the hook.
Hook assembly. Attaches directly to the load or to slings and rigging equipment.
Control system. A pendant control or wireless remote that lets the operator start, stop, raise, and lower the load.
Brake. Holds the load securely in position whenever the motor is not actively lifting or lowering.
Limit switches. Automatically stop the hoist at the top and bottom of its travel range to prevent overtravel.
Key Specifications to Check in Electric Hoist
When comparing electric hoists, a few specifications determine whether a hoist fits the application.
- Capacity. The maximum load the hoist is rated to lift safely, usually measured in tons.
- Lifting height. The vertical distance the hook can travel, which depends on building height and the application.
- Lifting speed. Measured in meters per minute, this affects how quickly loads move through a work cycle.
- Voltage and phase. Industrial hoists typically run on three-phase power, while lighter-duty units may use single-phase.
- Duty class. Indicates how frequently and how heavily the hoist is expected to work, which affects motor and component selection.
- Trolley type. Hoists can be fixed or mounted on a manual, geared, or motorized trolley that allows the hoist to travel along a beam or crane bridge.
Electric Hoist Applications
Electric hoists support lifting tasks across a wide range of industries. Common applications include:
- Steel fabrication and metal processing plants
- Automotive and machinery assembly lines
- Warehouses and logistics centers
- Shipyards and heavy equipment maintenance
- Construction and installation projects
- Workshops handling frequent, repetitive lifts
Because they are compact and can be mounted on different crane types, electric hoists are one of the most flexible pieces of material handling equipment in industrial settings.
How to Choose the Right Electric Hoist
Choosing the right hoist starts with the load. Confirm the maximum weight you need to lift, then select a hoist rated above that figure with a reasonable safety margin. Next, check the lifting height needed for your building or structure, since this determines rope or chain length.
Duty cycle matters just as much as capacity. A hoist used for occasional lifts does not need the same motor and component rating as one running continuously on a production line. Matching the hoist to its actual working conditions extends service life and reduces maintenance.
Manufacturers building industrial lifting equipment usually offer hoists starting from 1 ton capacity and scale up from there for heavier-duty applications. Nybon Machinery, a professional electric hoist manufacturer in China, offers wire rope and chain hoists designed for this range, built to work as part of complete overhead and gantry crane systems rather than as standalone units.
Frequently Asked Questions
What is the difference between a wire rope hoist and a chain hoist?
A wire rope hoist uses a steel wire rope and suits heavier loads and higher speeds, while a chain hoist uses a load chain and works well for lighter to medium duty lifting in more compact spaces.
What is the minimum capacity of an industrial electric hoist?
Industrial electric hoists typically start from 1 ton capacity and scale up to well over 100 tons for heavy lifting applications such as steel handling and shipbuilding.
Can an electric hoist be used without a crane?
Yes. An electric hoist can be mounted on a fixed beam, a monorail, or a standalone support structure without needing a full crane system, though it is most commonly used as part of a crane.
What is a limit switch on an electric hoist?
A limit switch is a safety device that automatically stops the hoist motor when the hook reaches its highest or lowest allowed position, which prevents overtravel and equipment damage.
How often should an electric hoist be inspected?
Electric hoists should be inspected regularly according to duty class and usage frequency, with daily visual checks and periodic formal inspections of the motor, brake, wire rope or chain, and hook assembly.
What voltage do industrial electric hoists use?
Most industrial electric hoists run on three-phase power for higher capacity and continuous duty applications, while smaller single-phase units are used for lighter workshop tasks.
