High-quality single girder overhead crane for sale from Nybon Machinery. 1-32 Ton capacity, space-saving design for workshops, warehouses & factories. Customizable, free quote!

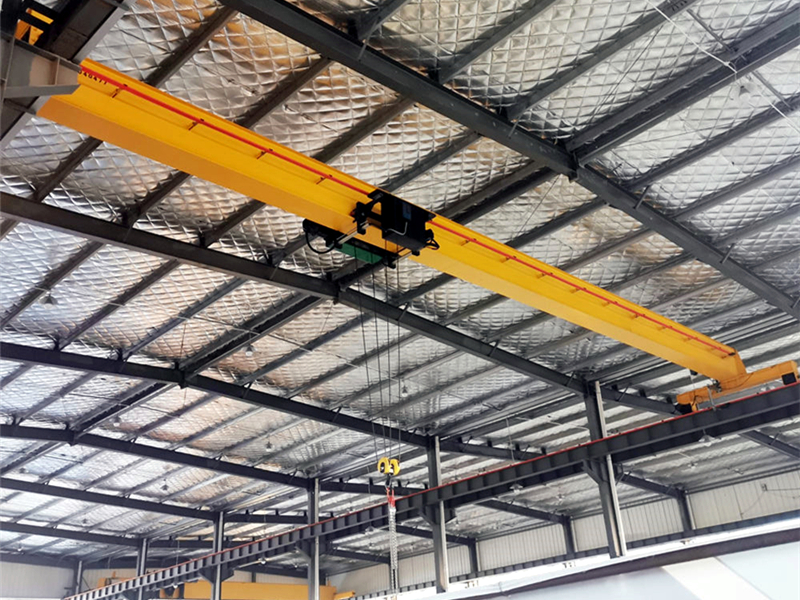

Our single girder overhead crane is designed for light to medium-duty lifting, making it suitable for a wide range of industries and applications where space and budget are priorities. Some of the most common uses include:
Below is the standard technical parameter table for our single girder overhead crane. All specifications can be fully customized to meet your specific project requirements, including load capacity, span, lifting height, power supply, and control system. Contact our team to discuss your needs and receive a tailored solution.
| Parameter | Standard Specification | Customizable Range |
|---|---|---|
| Load Capacity | 1-25 Ton | 1-32 Ton |
| Span | 7.5-31.5 Meters | 6-35 Meters |
| Lifting Height | 6-30 Meters | 5-35 Meters |
| Lifting Speed | 3-12 m/min | 2-15 m/min (Variable Speed Optional) |
| Travelling Speed | 10-30 m/min | 8-40 m/min (VFD-Controlled Optional) |
| Working Class | A3-A4 (FEM/ISO Standard) | A2-A5 |
| Power Supply | 380V/50Hz/3Phase | 220V-480V, 50/60Hz (Regional Standards) |
| Control System | Pendant Control | Wireless Remote Control / Dual Control (Optional) |
| Operating Environment | -20°C to +60°C, IP55 Protection | Low Headroom / Anti-Corrosion (Custom) |
| Hoist Type | Electric Wire Rope Hoist / Chain Hoist | Custom Hoist Based on Load Requirements |
Since its inception, Nybon Machinery has focused on the manufacturing of heavy lifting equipment.
Our main products include bridge cranes, gantry cranes, rubber tyred gantry cranes, rail-mounted container gantry cranes, straddle carriers, transporters, as well as casting cranes, hoists and beam launching machines.
We stand out with our strong design and customization capability, offering tailored solutions to meet customers’ unique needs.
Customization Service
At Nybon Machinery, we recognize that every heavy-duty lifting project has unique requirements. That’s why we offer fully customizable double girder gantry crane solutions to fit your specific needs. Our team of experienced engineers will work closely with you to tailor every aspect of the crane, including load capacity, span, lifting height, control system, structural design (such as cantilever length, leg type, and track configuration), and special features. Whether you need a crane for high-temperature steel mill operations, corrosive port environments, or precision heavy lifting, we can design a solution that meets your exact specifications. Optional features include anti-sway systems, laser-guided positioning, remote monitoring, and special coatings for harsh conditions. Contact us today to discuss your customization needs and get a free design proposal.

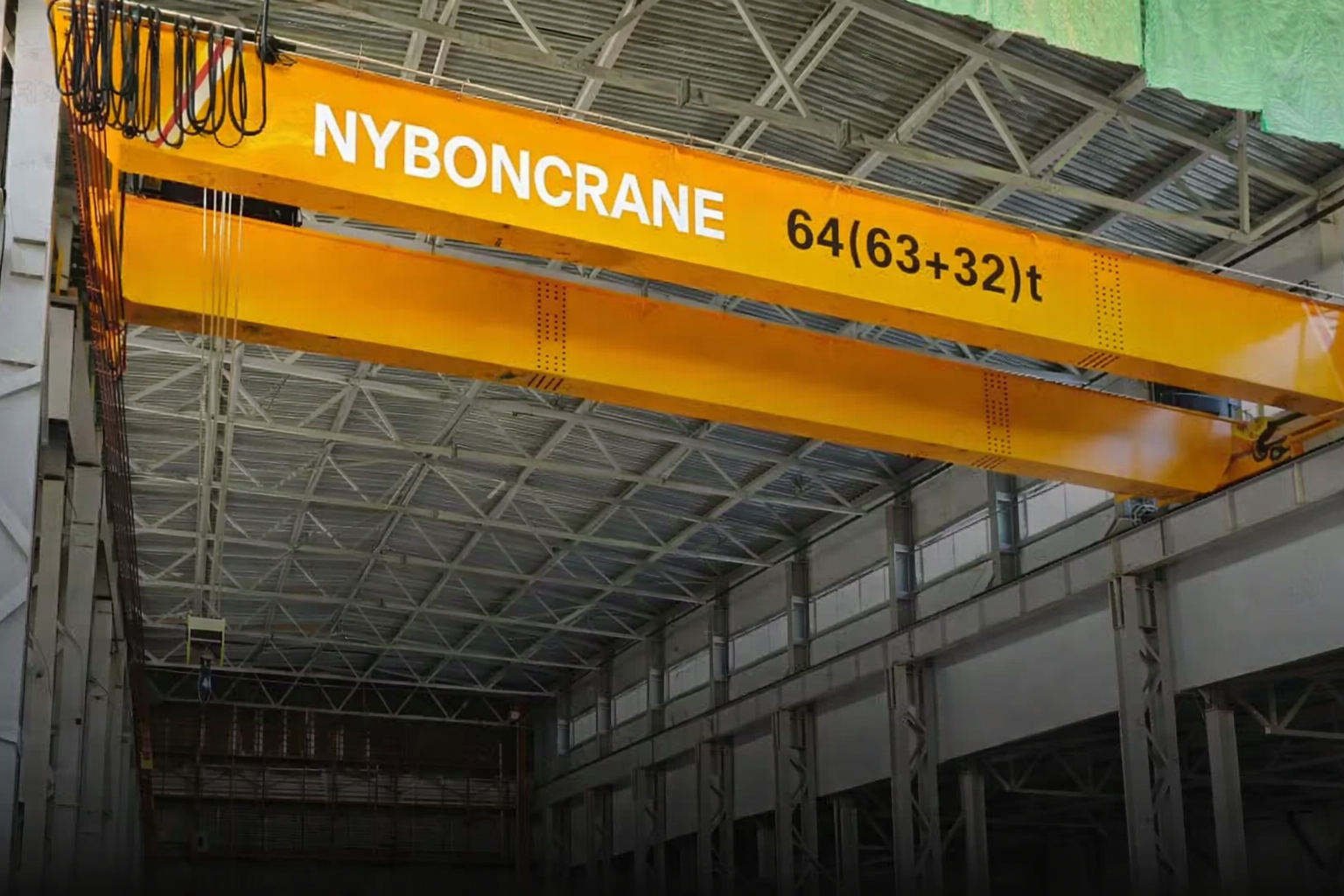

A: The main difference is the number of girders and their intended use. A single girder overhead crane has one horizontal beam, is lighter, more compact, and designed for light to medium-duty lifting (1-32 Ton). It is more cost-effective and space-saving, making it ideal for small facilities. A double girder overhead crane has two parallel girders, offers higher load capacity (5-500 Ton) and greater stability, and is designed for heavy-duty, high-frequency operations. Double girder cranes are more expensive but better suited for heavy industrial applications.
A: Yes, we offer a low-headroom version of our single girder overhead crane, specifically designed for facilities with limited ceiling height. The low-headroom design features a compact trolley and hoist configuration that minimizes the crane’s overall height, allowing it to operate in spaces where standard cranes would not fit. This makes the single girder crane an excellent choice for older buildings or facilities with height restrictions.

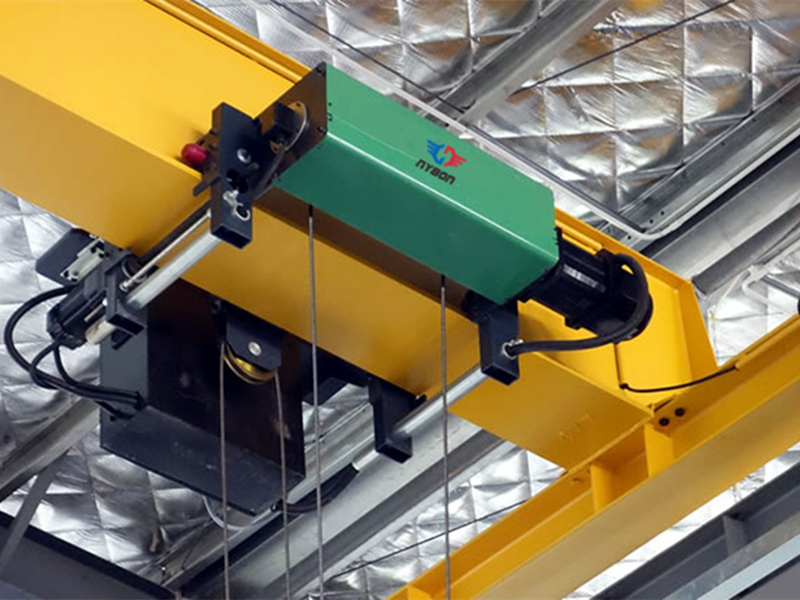

A: Our single girder overhead cranes come standard with either an electric wire rope hoist or an electric chain hoist, depending on the load capacity and application. Electric wire rope hoists are ideal for heavier loads (5-32 Ton) and longer lifting heights, while electric chain hoists are suitable for lighter loads (1-5 Ton) and more frequent lifting. We can also customize the hoist type to meet your specific needs, including electromagnetic hoists for lifting ferrous materials.
A: The manufacturing time for a standard single girder overhead crane (1-25 Ton, standard configurations) is 3-5 weeks. Customized cranes, especially those with low-headroom design or special features, may take 5-7 weeks to manufacture. Installation typically takes 3-5 days, depending on the crane’s size, complexity, and site conditions. We work with trusted logistics and installation partners to ensure timely delivery and setup worldwide. Contact us for a specific timeline based on your order.
A: Yes, we offer full turnkey solutions, including professional installation by our team of experienced technicians. Our team will travel to your site to assemble, test, and commission the crane, ensuring it meets all safety and performance standards. We also provide comprehensive after-sales service, including regular maintenance, repairs, spare parts supply, and 24/7 technical support. Our goal is to ensure your single girder overhead crane operates smoothly and efficiently, minimizing downtime and maximizing productivity.
A: While our single girder overhead cranes are primarily designed for indoor use (workshops, warehouses), we can customize them for outdoor use with special anti-corrosion coatings and weather-resistant electrical components. The outdoor version features hot-dip galvanization to resist rain, wind, and rust, while the electrical components have IP55 or higher protection to ensure reliable operation in outdoor conditions. Contact us to discuss your outdoor lifting needs and get a customized solution.
Contact Nybon Machinery today via email or phone to discuss your single girder gantry crane needs, get a free quote, or learn more about our products and services. We look forward to helping you find the perfect lifting solution for your business!
When you choose Nybon Machinery for your single girder gantry crane, you’re partnering with a trusted manufacturer with years of experience in the heavy machinery industry. Here’s why our clients around the world choose us:
