High-quality wire rope hoist (electric wire rope hoist) for sale from Nybon Machinery. 1-80 Ton, heavy-duty, durable for steel mills, construction & industrial use. Free quote & after-sales!

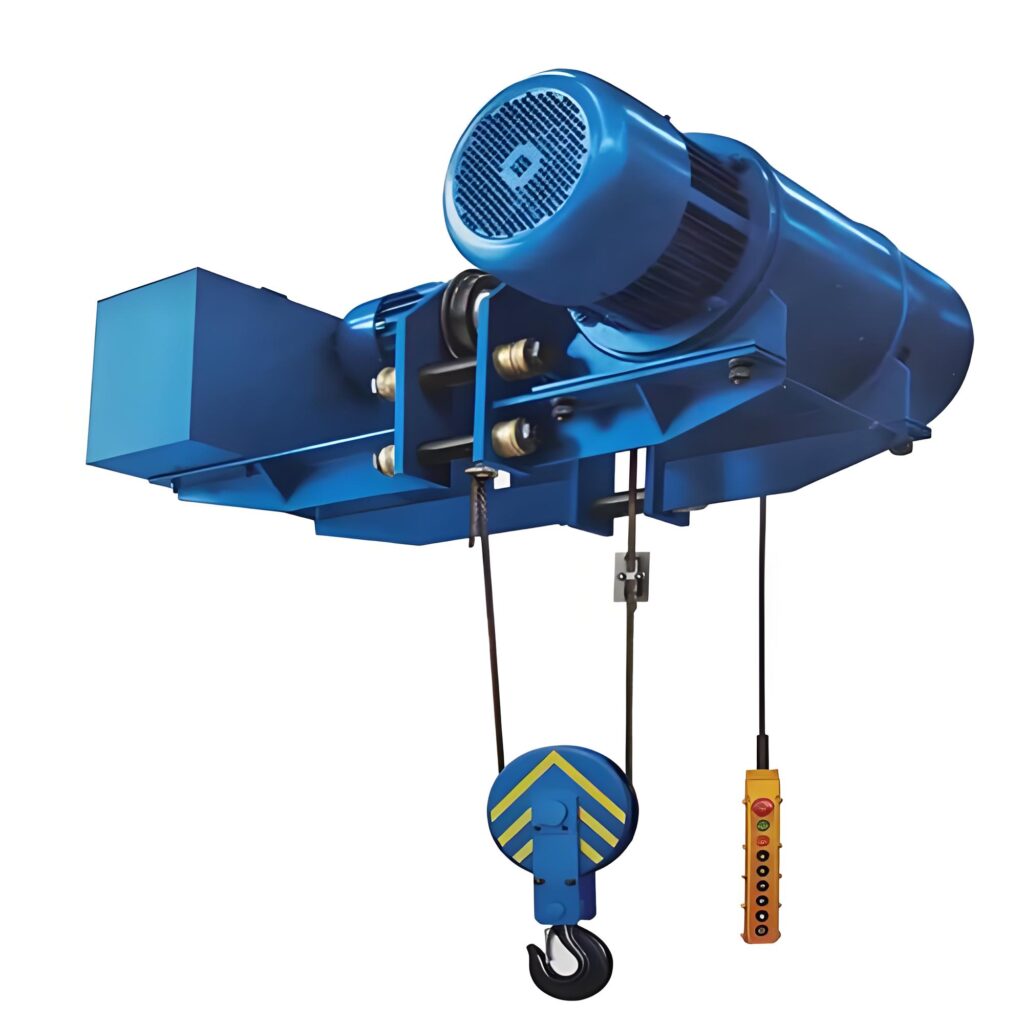

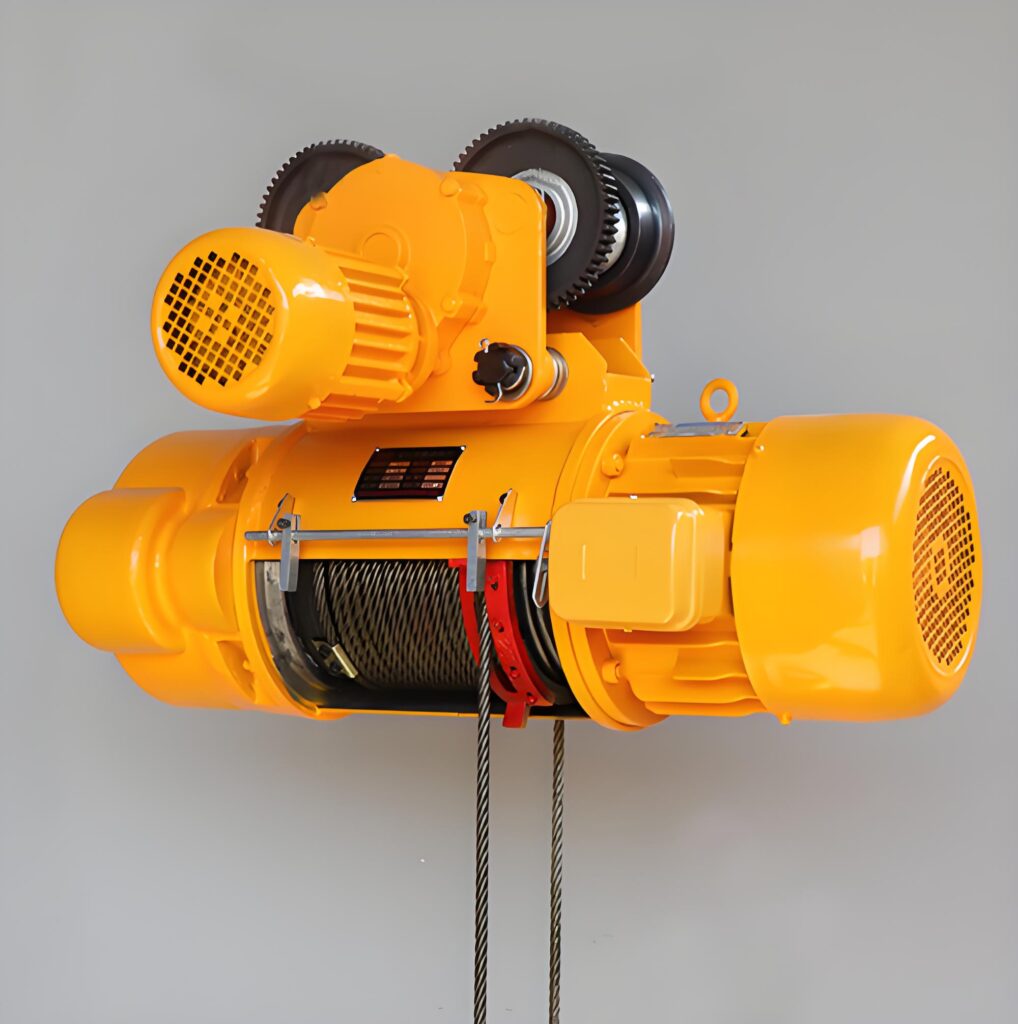

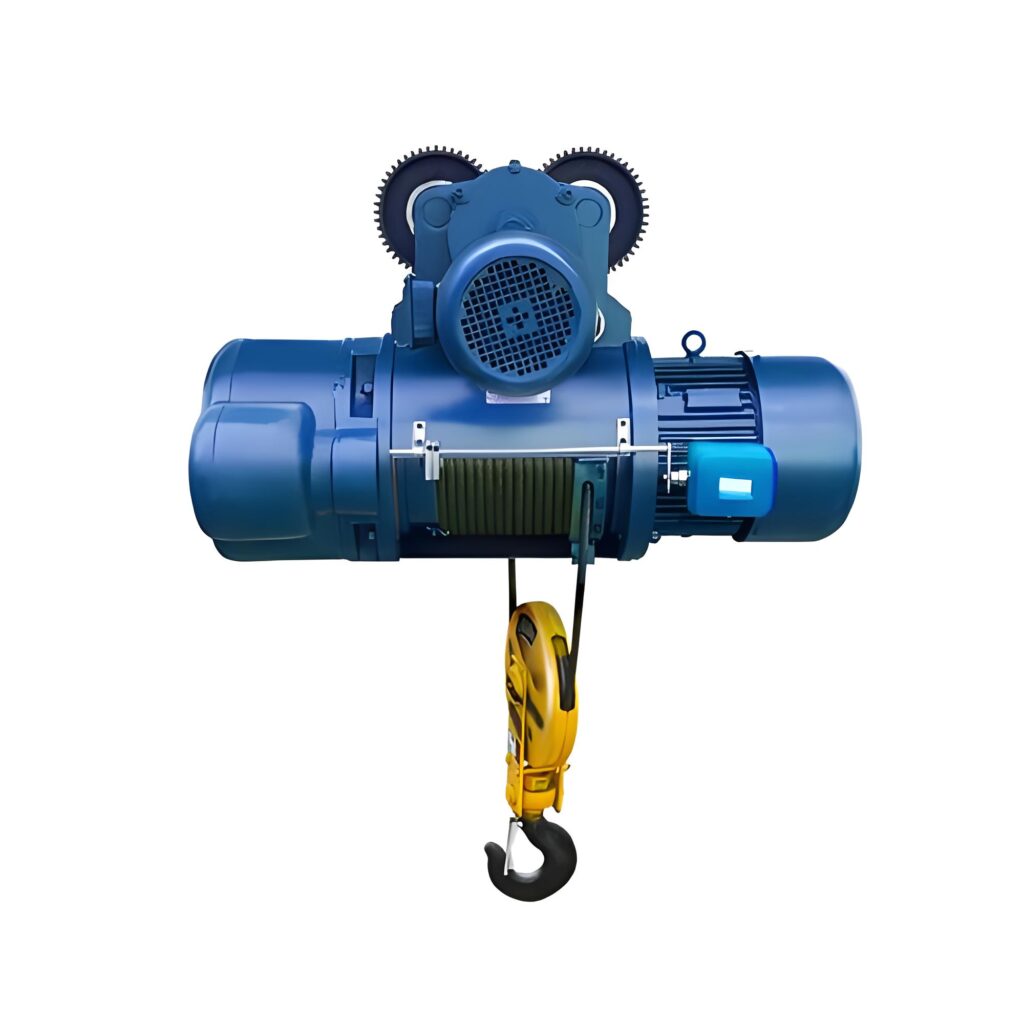

Our wire rope hoist is designed for heavy-duty industrial applications, where strength, stability, and durability are critical. Its versatility and compatibility with various lifting systems make it suitable for a wide range of industries, from steel production to construction. Below are the key application scenarios for our wire rope hoist
Our wire rope hoist is available in standard configurations to meet most heavy-duty industrial lifting needs, with full customization options to fit your specific requirements. Below are the standard technical parameters, and we can adjust load capacity, lifting height, and other features to match your operational needs.
| Parameter | Standard Specification (CD Type - Single Speed) | Standard Specification (MD Type - Double Speed) | Customizable Range |
|---|---|---|---|
| Load Capacity | 1-80 Ton | 1-80 Ton | 1-100+ Ton |
| Lifting Height | 6-30 Meters | 6-30 Meters | 5-40 Meters |
| Lifting Speed | 1-8 m/min (Single Speed) | Fast: 1-8 m/min; Slow: 0.5-2 m/min |
0.5-10 m/min (Variable Speed Optional) |
| Working Class | A5-A7 (FEM/ISO Standard) | A5-A7 (FEM/ISO Standard) | A5-A8 |
| Power Supply | 380V/50Hz/3Phase | 380V/50Hz/3Phase | 220V-480V, 50/60Hz (Regional Standards) |
| Control System | Pendant Control (5m Cable) | Pendant Control (5m Cable) | Wireless Remote Control / PLC Automation |
| Wire Rope Type | Galvanized Steel Wire Rope (2160N/mm²) | Galvanized Steel Wire Rope (2160N/mm²) | Stainless Steel Wire Rope (Optional) |
| Operating Environment | -20°C to +60°C, Indoor/Outdoor | -20°C to +60°C, Indoor/Outdoor | High Temperature / Anti-Corrosion (Custom) |
Since its inception, Nybon Machinery has focused on the manufacturing of heavy lifting equipment.
Our main products include bridge cranes, gantry cranes, rubber tyred gantry cranes, rail-mounted container gantry cranes, straddle carriers, transporters, as well as casting cranes, hoists and beam launching machines.
We stand out with our strong design and customization capability, offering tailored solutions to meet customers’ unique needs.
Customization Service
At Nybon Machinery, we recognize that every heavy-duty lifting project has unique requirements. That’s why we offer fully customizable double girder gantry crane solutions to fit your specific needs. Our team of experienced engineers will work closely with you to tailor every aspect of the crane, including load capacity, span, lifting height, control system, structural design (such as cantilever length, leg type, and track configuration), and special features. Whether you need a crane for high-temperature steel mill operations, corrosive port environments, or precision heavy lifting, we can design a solution that meets your exact specifications. Optional features include anti-sway systems, laser-guided positioning, remote monitoring, and special coatings for harsh conditions. Contact us today to discuss your customization needs and get a free design proposal.
A: The main difference is the speed configuration. CD type wire rope hoists are single-speed, designed for basic heavy-duty lifting tasks that require consistent, fast lifting speeds (1-8 m/min). MD type wire rope hoists are double-speed, featuring a fast speed for quick material transfer and a slow speed (0.5-2 m/min) for precise positioning of heavy or delicate loads. MD type is ideal for applications where accuracy is critical, while CD type is better suited for simple, fast lifting.
A: Yes, our standard wire rope hoist is designed for both indoor and outdoor use, with a sealed motor and gear system to protect against dust and moisture. For harsh outdoor environments (e.g., marine, coastal areas), we offer anti-corrosion coatings and stainless steel wire rope options to withstand saltwater and other corrosive substances. The hoist can also be equipped with a weatherproof cover for added protection in rainy or snowy conditions.
A: The load capacity you need depends on the maximum weight of the items you’ll be lifting. Our wire rope hoist is available in 1-80 Ton standard capacities, with customization up to 100+ Ton. We recommend choosing a hoist with a load capacity that is 10-20% higher than your maximum lifting weight to ensure safety and avoid overloading. Our team can help you assess your needs and recommend the right load capacity based on your specific application.
A: Yes, our wire rope hoist is designed to be compatible with most standard overhead cranes, gantry cranes, monorails, and jib cranes. We can customize the hoist’s mounting brackets and dimensions to fit your existing lifting system, making it a seamless upgrade. Our engineers will work with you to ensure the hoist integrates properly with your equipment, minimizing installation time and costs.
A: Yes, we offer full turnkey solutions for our wire rope hoist, including professional installation by our team of experienced technicians who specialize in heavy-industry lifting equipment. Our team will travel to your site to assemble, test, and commission the hoist, ensuring it meets all safety and performance standards. We also provide comprehensive
A: Yes, all our wire rope hoists are designed and manufactured in compliance with international standards, including ISO, CE, and FEM. We adhere to strict quality control processes throughout the manufacturing process, from material selection to final testing, to ensure our hoist meets the highest safety and performance standards for heavy-industry use. Our wire rope hoists are certified for export to over 50 countries, ensuring compliance with local industrial regulations.
Contact Nybon Machinery today via email or phone to discuss your single girder gantry crane needs, get a free quote, or learn more about our products and services. We look forward to helping you find the perfect lifting solution for your business!
When you choose Nybon Machinery for your single girder gantry crane, you’re partnering with a trusted manufacturer with years of experience in the heavy machinery industry. Here’s why our clients around the world choose us:
