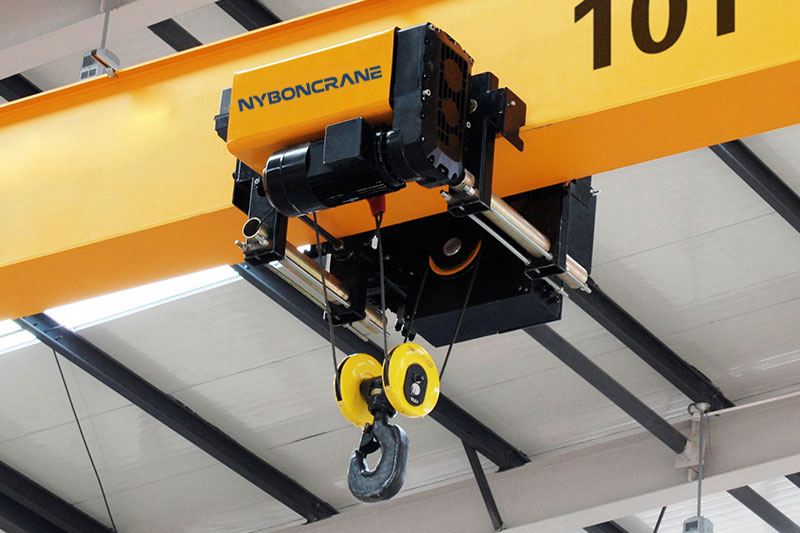

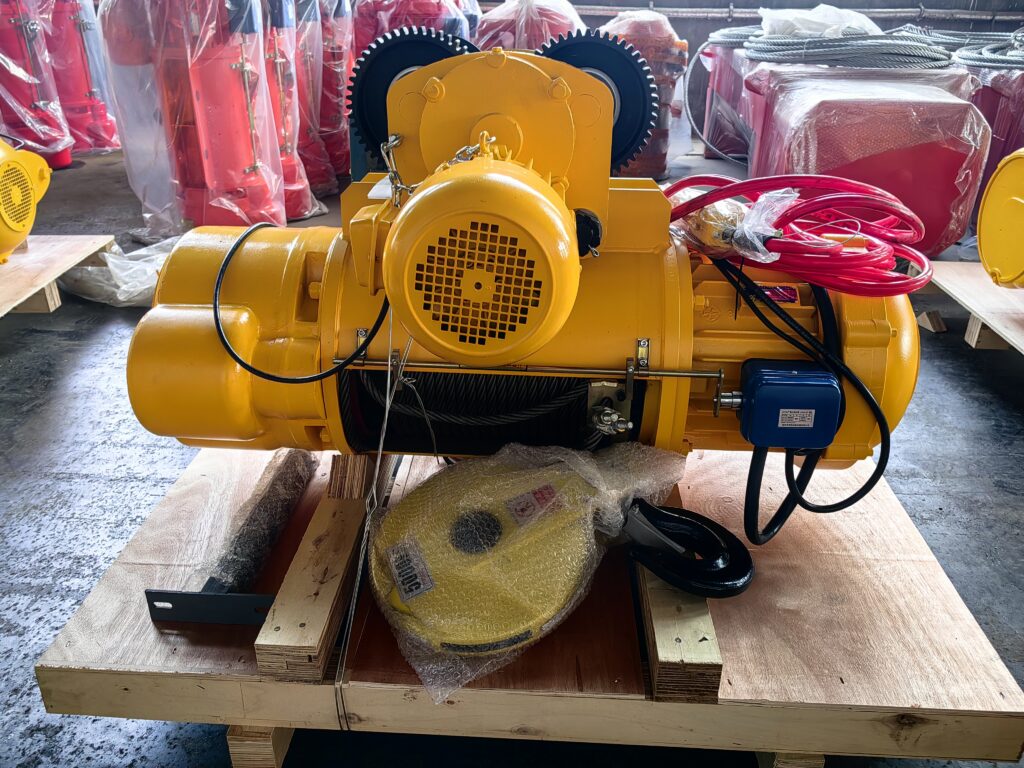

Nybon Machinery makes planetary electric hoists for precision lifting work. A planetary electric hoist uses a planetary gear system, which gives smoother control and quieter operation than standard hoist gears.
Our planetary electric hoist range covers 1 to 60 tons. It is a strong choice for facilities that need both precision and solid lifting capacity, from electronics plants to heavy manufacturing lines.
High-quality planetary electric hoist for sale from Nybon Machinery. 1- 60 ton, high-precision, energy-efficient & quiet for modern manufacturing & precision engineering.
Our planetary electric hoist is designed for precision lifting applications, where accuracy, quiet operation, and energy efficiency are critical. Its compact design and versatile compatibility make it suitable for a wide range of modern industrial sectors, from aerospace to electronics. Below are the key application scenarios for our planetary electric hoist:
Our planetary electric hoist is available in standard configurations to meet most precision lifting needs, with full customization options to fit your specific requirements. Below are the standard technical parameters, and we can adjust load capacity, lifting height, and other features to match your operational needs.
| Parameter | Standard Specification | Customizable Range |
|---|---|---|
| Load Capacity | 1-60 Ton | 0.5-80 Ton |
| Lifting Height | 6-25 Meters | 5-30 Meters |
| Lifting Speed | 0.5-10 m/min (Variable Speed) | 0.3-15 m/min |
| Working Class | A4-A6 (FEM/ISO Standard) | A3-A7 |
| Power Supply | 380V/50Hz/3Phase | 220V-480V, 50/60Hz (Regional Standards) |
| Control System | Pendant Control (5m Cable) + Variable Speed | Wireless Remote Control / PLC Automation / Dual Control |
| Lifting Medium | Grade 80 Alloy Chain / Galvanized Steel Wire Rope | Stainless Steel Chain/Wire Rope (Optional) |
| Operating Noise | ≤75dB | ≤65dB (Low-Noise Customization) |
| Operating Environment | -20°C to +60°C, Indoor (Cleanroom Compatible) | Outdoor / High-Temperature / Anti-Corrosion (Custom) |
At Nybon Machinery, we know every precision lifting project has different needs. That is why we offer fully customizable planetary electric hoists. Our engineers work with you to set the right load capacity, lifting height, noise level and control system. Whether you need a hoist for a cleanroom or a heavy manufacturing line, we can build a solution that fits. Contact us today for a free design proposal.
When you choose Nybon Machinery for your electric hoist, you’re partnering with a trusted manufacturer with years of experience in the heavy machinery industry. Here’s why our clients around the world choose us:
Since its inception, Nybon Machinery has focused on the manufacturing of heavy lifting equipment.
Our main products include bridge cranes, gantry cranes, rubber tyred gantry cranes, rail-mounted container gantry cranes, straddle carriers, transporters, as well as casting cranes, hoists and beam launching machines.
We stand out with our strong design and customization capability, offering tailored solutions to meet customers’ unique needs.
A planetary electric hoist uses a planetary gear system. This gives better precision, stronger torque and quieter operation than standard chain or wire rope hoists. It suits jobs where accuracy matters as much as lifting power.
Yes. We offer cleanroom-compatible versions with a sealed design, stainless steel parts, and low-noise operation. This suits electronics, semiconductor and pharmaceutical facilities.
Choose a capacity based on your heaviest load, ideally 10 to 20 percent above your maximum weight. Our planetary electric hoist range runs from 1 to 60 tons, with custom builds up to 80 tons.
No. It has simple, intuitive controls with variable speed adjustment. Pendant control comes standard, with wireless remote as an option. We also offer operator training.
Yes. We offer full installation by our technicians along with regular maintenance, spare parts and 24/7 technical support to keep downtime low.
