High-quality beam launching crane for sale from Nybon Machinery. 50-200 Ton capacity, specialized for bridge beam lifting & installation. Customizable, free quote!

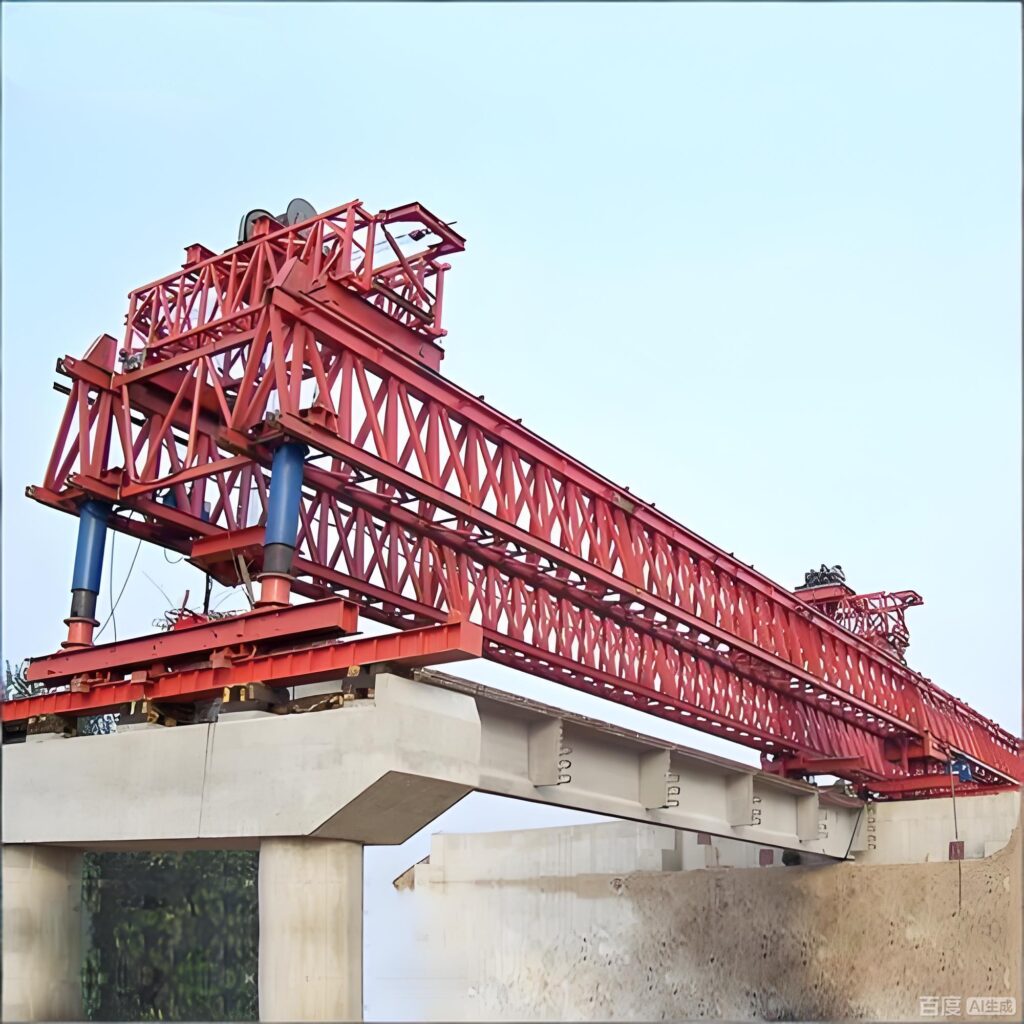

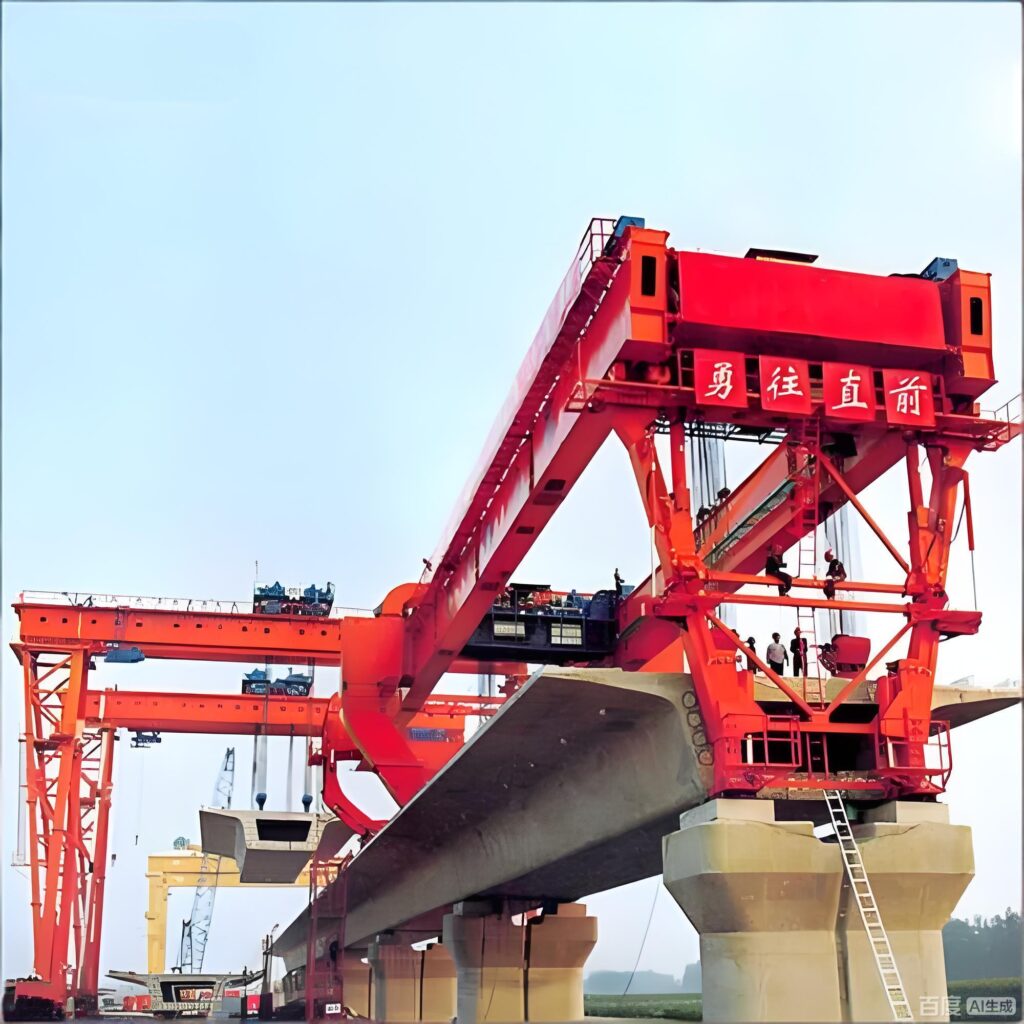

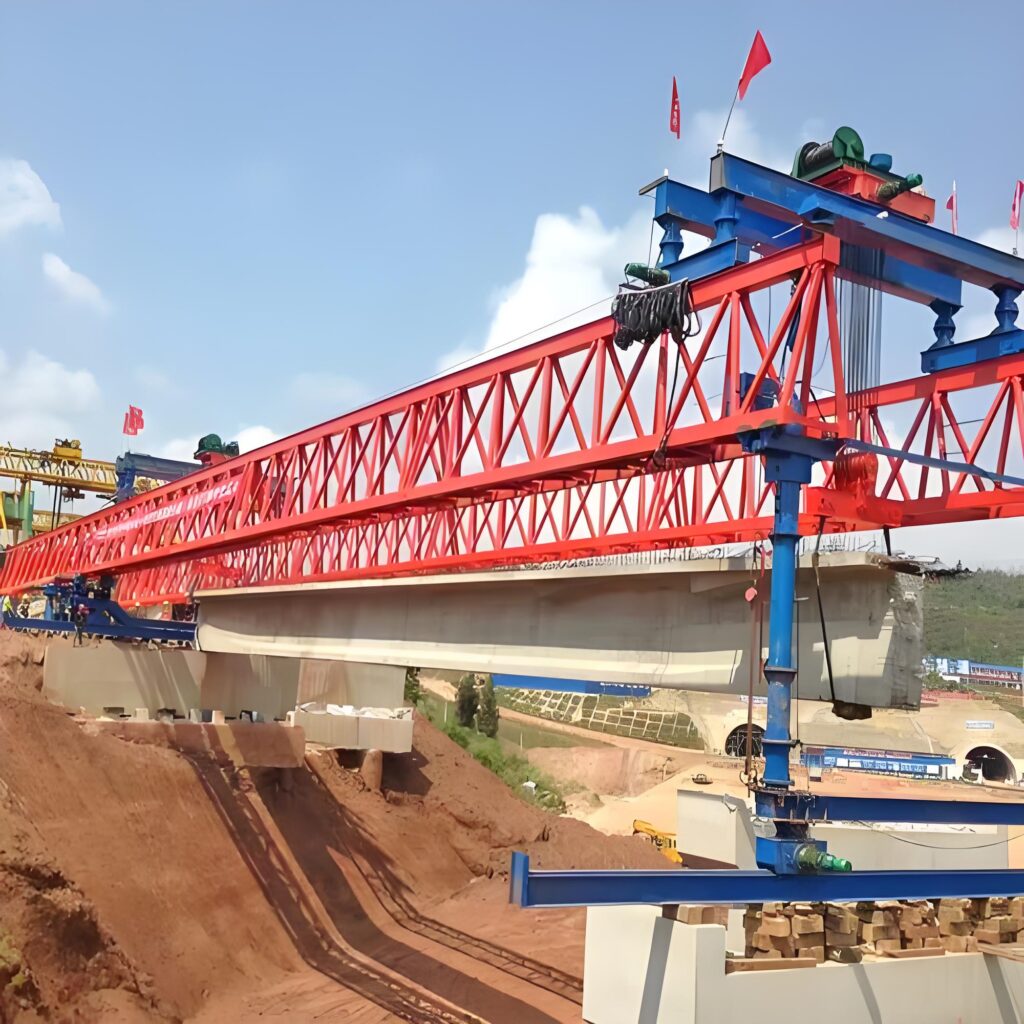

Our beam launching crane is specialized for bridge and infrastructure construction, making it suitable for a wide range of projects where precast beams or girders need to be lifted and installed. Some of the most common applications include
Below is the standard technical parameter table for our beam launching crane. All specifications can be fully customized to meet your specific bridge construction requirements, including load capacity, span, lifting height, power supply, control system, and leg design. Contact our team to discuss your project needs and receive a tailored solution.
| Parameter | Standard Specification | Customizable Range |
|---|---|---|
| Load Capacity | 50-200 Ton | 40-300 Ton |
| Span | 20-40 Meters | 18-50 Meters |
| Lifting Height | 10-25 Meters | 8-30 Meters |
| Lifting Speed | 1-6 m/min | 0.5-8 m/min (Variable Speed Optional) |
| Travelling Speed | 5-15 m/min | 3-20 m/min (VFD-Controlled Optional) |
| Working Class | A6-A7 (FEM/ISO Standard) | A5-A8 |
| Power Supply | 380V/50Hz/3Phase | 220V-480V, 50/60Hz (Regional Standards) |
| Control System | Cabin Control / Wireless Remote Control | PLC Control / Dual Control (Optional) |
| Operating Environment | -20°C to +60°C, IP55 Protection | High Temperature/Dust-Resistant (Custom) |
| Movement Type | Rail-Mounted (Bridge Deck/Rail) | Custom Movement Based on Project Needs |
Since its inception, Nybon Machinery has focused on the manufacturing of heavy lifting equipment.
Our main products include bridge cranes, gantry cranes, rubber tyred gantry cranes, rail-mounted container gantry cranes, straddle carriers, transporters, as well as casting cranes, hoists and beam launching machines.
We stand out with our strong design and customization capability, offering tailored solutions to meet customers’ unique needs.
Customization Service
At Nybon Machinery, we recognize that every heavy-duty lifting project has unique requirements. That’s why we offer fully customizable double girder gantry crane solutions to fit your specific needs. Our team of experienced engineers will work closely with you to tailor every aspect of the crane, including load capacity, span, lifting height, control system, structural design (such as cantilever length, leg type, and track configuration), and special features. Whether you need a crane for high-temperature steel mill operations, corrosive port environments, or precision heavy lifting, we can design a solution that meets your exact specifications. Optional features include anti-sway systems, laser-guided positioning, remote monitoring, and special coatings for harsh conditions. Contact us today to discuss your customization needs and get a free design proposal.
A: The key difference is their specialized purpose and design. A beam launching crane is specifically engineered for lifting and installing precast beams and girders in bridge construction, with features like adjustable legs, precise positioning controls, and mobility along bridge decks or piers. Standard gantry cranes are designed for general heavy lifting and lack the specialized functionality needed for beam installation. Beam launchers also have higher load capacities and greater stability to handle the heavy, bulky beams used in bridge projects.
A: Yes, our beam launching cranes are highly adaptable. The adjustable leg span allows the crane to fit different bridge widths, while the telescopic support legs can be extended or retracted to accommodate varying pier heights. This flexibility makes the crane suitable for a wide range of bridge designs, from small urban overpasses to large long-span highways and railway bridges.
A: Our beam launching cranes are typically rail-mounted, with wheels that run on specialized rails installed on the bridge deck or piers. This allows the crane to move forward along the completed section of the bridge, lifting beams from transport vehicles and positioning them onto the next set of piers. The movement is controlled precisely to ensure the crane stays aligned with the bridge structure, enabling continuous, efficient beam installation
A: The manufacturing time for a standard beam launching crane (50-200 tons, standard configurations) is 8-10 weeks. Customized cranes, especially those for large long-span bridges or with special features, may take 10-12 weeks to manufacture. Installation and commissioning typically take 7-10 days, depending on the crane’s size, complexity, and site conditions. We work closely with your construction team to ensure timely delivery and installation, aligning with your project timeline.
A: Yes, we offer full turnkey solutions, including professional installation by our team of experienced technicians who specialize in bridge construction equipment. Our team will travel to your site to assemble, test, and commission the crane, ensuring it meets all safety and performance standards. We also provide comprehensive after-sales service, including regular maintenance, repairs, spare parts supply, and 24/7 technical support. Our goal is to minimize downtime and ensure your crane operates smoothly throughout your project.
A: Yes, our beam launching cranes are designed to handle both precast concrete beams and heavy steel girders. We can customize the lifting attachments (such as spreader bars, clamps, or lifting slings) to suit the specific type and shape of the beam, ensuring safe and secure lifting. The crane’s high load capacity and stable design make it suitable for both material types, making it a versatile tool for bridge construction projects.
Contact Nybon Machinery today via email or phone to discuss your single girder gantry crane needs, get a free quote, or learn more about our products and services. We look forward to helping you find the perfect lifting solution for your business!
When you choose Nybon Machinery for your single girder gantry crane, you’re partnering with a trusted manufacturer with years of experience in the heavy machinery industry. Here’s why our clients around the world choose us:
Tell us your requirements and our engineering team will provide a tailored lifting solution with competitive pricing within 24 hours.
From design to delivery, we ensure reliable, efficient, and cost-effective crane systems for your business needs. Whether you need a gantry crane, overhead crane, or complete lifting solution we are here to help.
